12 Wire Slip Ring

Product Overview

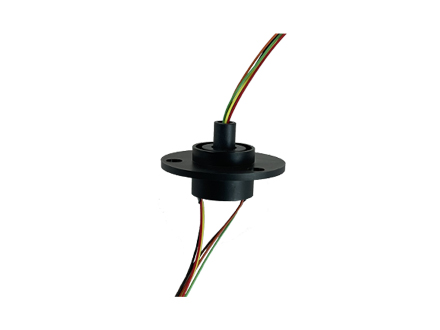

Reehonde 12 Wire Slip Ring, as an outstanding representative of our cap-type slip ring series, is specially designed for rotating equipment to ensure uninterrupted transmission of signals and power during 360° rotation. Incorporating advanced collector rings and capsule slip ring designs, this product achieves compact structure and versatile applications.

With excellent electrical performance, compact structural design, and highly customized services, this slip ring has become the preferred solution for aerospace, automation equipment, medical equipment, security monitoring, and other fields.

Technical Specifications & Core Parameters

Transmission Channel: 12 channels, supporting synchronous transmission of signals and power

Conductive material: gold/silver alloy contacts, ensuring low resistance and high conductivity

Insulating material: high-performance insulating material, providing excellent electrical isolation

Insulation resistance: ≥100MΩ, ensuring the stability of signal transmission

Rotation life: ≥10^8 rotations, durable and suitable for long-term operation

Operating temperature range: -40°C to +80°C (adjustable according to customer needs)

Protection level: IP65 (optional IP68), dustproof and waterproof, adaptable to harsh environments

Dimensions and weight: The specific dimensions are determined according to customized requirements, and detailed dimension drawings and weight information are provided

Shell Material

Aluminum alloy: high strength, corrosion resistance, suitable for harsh working environments

Plastic: lightweight, good insulation, color customization according to customer needs

Product Features and Advantages

High-precision transmission

Reehonde 12 Wire Slip Ring uses advanced conductive materials and precision manufacturing processes to ensure high-precision and low-noise signal transmission. The incorporation of collector rings enhances its capability for stable and accurate data transmission. During high-speed rotation, the resistance fluctuation is minimal, making it suitable for precision control systems and high-speed data transmission applications.

Smooth operation

The design of the cap-type slip ring and capsule slip ring structure makes the contact between the rotating part and the fixed part more uniform, reducing friction and wear, thereby extending the service life. In addition, we have adopted advanced lubrication technology to further improve the smoothness and stability of the slip ring.

Long life

Thanks to high-quality materials and exquisite craftsmanship, the Reehonde 12 Wire Slip Ring has an extremely long service life. Even in harsh working environments, it can maintain stable performance, reduce the frequency of maintenance and replacement, and lower customers' operating costs.

Customizable shell

In order to meet the needs of different customers, we provide two shell materials, aluminum alloy and plastic, for selection. Customers can choose the most suitable shell material according to their application scenarios and budget requirements. At the same time, we also provide customized services in terms of shell color, shape, etc., to ensure that the product matches the customer's equipment perfectly.

Easy to integrate

Reehonde 12 Wire Slip Ring adopts a standard interface design, which is convenient for seamless docking with other devices. We provide detailed interface documentation and technical support to help customers complete integration work quickly. In addition, we also provide customized interface design services to meet customers' needs for special interfaces.

Customized services

Reehonde is committed to providing customers with a full range of customized services. In addition to the customization of the shell material and color, we can also adjust the electrical performance, size, installation method, etc., of the slip ring according to the specific needs of customers. Our team of engineers will work closely with customers to jointly develop customized solutions that incorporate collector rings and capsule slip rings to meet customer requirements.

Application Scenarios

Reehonde 12 Wire Slip Ring has become the preferred solution in many fields due to its excellent performance and wide applicability. The following are some typical application scenarios:

Aerospace: Used in rotating parts of equipment such as drones and satellites to ensure stable transmission of signals and power.

Automation equipment: Provide reliable signal and power connections in equipment such as robot joints and rotating platforms.

Medical equipment: Ensure the accuracy and stability of data transmission in high-precision medical equipment such as medical imaging equipment and surgical robots.

Security monitoring: Used in security monitoring equipment such as pan-tilt cameras to achieve 360° blind spot monitoring.

Wind power generation: In the rotating part of the wind turbine blade, it provides signal and power transmission to ensure the stable operation of the wind turbine.

Customer Cases and Reviews

Medical Equipment Manufacturer

A medical equipment manufacturer selected Reehonde 12 Wire Slip Ring as the signal transmission component of its surgical robot. The surgical robot has extremely high requirements for the accuracy and stability of data transmission, and our slip rings fully meet these requirements. During the operation, the slip ring performed well and ensured the smooth progress of the operation. The customer highly recognized our products and services and recommended them to other medical equipment manufacturers.

Our sales team will provide you with detailed purchase guides and quotation information. At the same time, we also provide a full range of after-sales services, including warranty policies, technical support, and rapid response mechanisms. Whether you are looking for standard products or customized solutions, Reehonde will serve you wholeheartedly.

Safety and Compliance

Reehonde always puts product quality and safety first. Our 12 Wire Slip Ring products meet international standards and safety certification requirements, including CE, UL, RoHS, etc. We are committed to providing customers with high-quality, safe, and reliable conductive slip ring solutions.
