Product Overview

Reehonde's Large Diameter Slip Ring is designed for applications that require power and signal transmission across large rotating assemblies. These Slip Rings are ideal for systems with a need for high-capacity signal and power transmission, ensuring continuous and reliable operation in challenging environments.

Engineered for high performance, durability, and seamless integration, Reehonde's Large Diameter Slip Rings are suitable for a wide range of industries, including industrial automation, aerospace, and renewable energy.

Product Features

Customizable Large Diameter Design

High Capacity: Designed to handle large amounts of power and signal transmission across large rotating systems, with capacity to support hundreds of channels simultaneously.

Customizable Size: Custom diameters, lengths, and mounting options are available to meet the specific requirements of each application.

Multi-Channel Capability: Supports both power and data transmission through multiple channels, enabling simultaneous transmission of various signals, such as power, Ethernet, USB, and industrial bus signals.

High Performance and Reliability

High Current & Power Transmission: Capable of transmitting high current (up to 5000A) and high power, making it ideal for heavy-duty applications like wind turbines, radar systems, and large industrial machines.

Superior Signal Integrity: Optimized for low-noise transmission, ensuring stable and clear signal quality even in high-speed, high-load environments.

High-Speed Rotation: Designed to handle high rotational speeds, with a maximum speed of up to 10,000 RPM, ensuring smooth and uninterrupted operation for rotating assemblies.

Durability and Environmental Resistance

Rugged and Reliable: Built from premium materials to withstand harsh conditions, including vibration, shock, high temperatures, and other extreme environments.

High-Temperature Resistance: Available in high-temperature versions that can withstand up to 500°C, ensuring functionality in high-heat applications.

Waterproof and Dustproof: Available with IP65 and IP68 ratings for use in wet, humid, or dusty environments, providing added protection against moisture and contaminants.

Easy Integration and Maintenance

Compact and Modular Design: The large diameter slip ring is designed to be compact yet powerful, allowing for easy integration into various systems with minimal space requirements.

Low Maintenance: Engineered to require minimal maintenance, with high durability that reduces the frequency of replacement, ensuring long-term, reliable operation.

Application Scenarios

Wind Turbines

In wind turbines, Large Diameter Slip Rings are essential for transmitting power and data between the stationary and rotating parts of the system. These slip rings ensure uninterrupted signal and power transmission for the operation of the turbine's motors, sensors, and control systems.

Radar Systems

For radar systems, Large Diameter Slip Rings provide reliable transmission of high-power signals and data between the rotating antenna and stationary components. Their robust design ensures continuous operation in mission-critical defense and aerospace applications.

Industrial Equipment

In large-scale industrial equipment, such as rotating machinery, conveyor systems, and CNC machines, Large Diameter Slip Rings ensure stable and efficient power and signal transmission, allowing these systems to operate at high efficiency and speed.

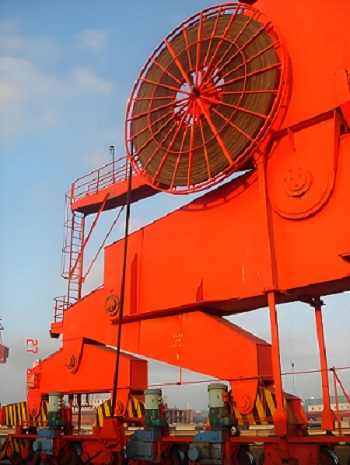

Cable Reels and Cable Management Systems

In cable reels used for power and communication systems, Large Diameter Slip Rings transmit electrical power and signals from the stationary base to the rotating reel. They ensure seamless and reliable signal flow in applications like marine, offshore, and construction equipment.

Customization Services

Reehonde offers complete customization for Large Diameter Slip Rings to meet the unique requirements of your application:

Channel Customization: Custom configurations for handling power, signal, and data transmission through multiple channels.

Size and Diameter Options: Customizable diameters, lengths, and mounting configurations to suit your equipment’s design.

High Current & High-Speed Options: Tailored solutions for high current transmission (up to 5000A) and high rotational speeds (up to 10,000 RPM).

Environmental Resistance: Customization for extreme temperatures, high humidity, and high-pressure environments with IP65 and IP68 waterproof options.

Conclusion

Reehonde’s Large Diameter Slip Rings offer high-capacity, high-performance solutions for systems that require continuous power and signal transmission across large rotating components. With customizable options for size, channels, and environmental resistance, these slip rings are designed to ensure reliable operation in demanding applications. Whether in wind energy, radar systems, or heavy-duty industrial machinery, Reehonde's Large Diameter Slip Rings provide the performance, durability, and flexibility your system needs for seamless operation.
