What are Slip Rings: Understanding 10 Slip Rings Components

Basic concepts of Slip Rings

Slip Rings are precision devices that transmit electricity, signals, or fluids between rotating and stationary components. It achieves continuous and uninterrupted transmission through the sliding contact between the conductive ring and the electric brush, and is widely used in electromechanical systems that require 360 ° unrestricted rotation.

The core components of Slip Rings

Conductive ring: installed on a rotating component, composed of multiple circular conductive materials, each ring corresponding to a different current or signal channel.

Electric brush: fixed on a stationary component, usually made of precious metal alloy, maintaining stable sliding contact with the surface of the conductive ring.

Insulation material: used to separate different conductive rings and prevent short circuits.

Supporting structure: including stator, rotor, bearings, etc., to ensure the stable operation of the slip ring.

Detailed Explanation of 10 Slip Rings Components

1. Capsule Slip Rings

Features: Compact structure, compact size, suitable for applications with limited space.

Applications: drones, medical equipment, micro robots, etc.

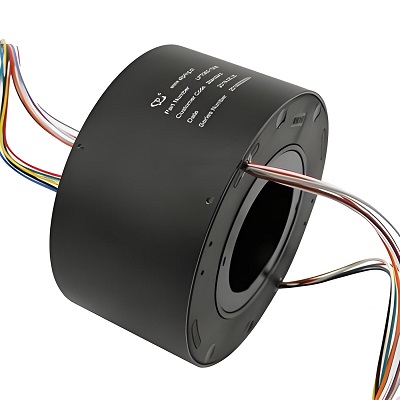

2. Through Hole Slip Rings

Features: It has a central through-hole that allows shafts or cables to pass through, suitable for equipment that needs to rotate around an axis.

Applications: wind turbines, radar systems, rotating platforms, etc.

3. Fiber Optic Slip Rings

Features: Utilizing fiber optic transmission for high-speed data signals, with extremely low loss and strong resistance to electromagnetic interference.

Applications: video surveillance, data communication, military equipment, etc.

4. Mercury Slip Rings

Features: Using liquid mercury as a conductive medium to achieve extremely low resistance transmission.

Applications: high-precision measuring equipment, high-speed rotating systems, etc. (gradually being replaced due to environmental and safety issues).

5. High Frequency Slip Rings

Features: Designed specifically for high-frequency signal transmission, it has the characteristics of low loss and high stability.

Applications: radar systems, satellite communication, high-speed data transmission, etc.

6. Fluid Slip Rings

Characteristics: In addition to transmitting electricity and signals, it can also transmit liquids or gases.

Applications: chemical equipment, hydraulic systems, medical equipment, etc.

7. Separable Slip Rings

Features: Adopting modular design, easy to install and maintain, and can be flexibly combined according to needs.

Application: Large mechanical equipment, industrial automation systems, etc.

8. Pancake Slip Rings

Features: The conductive ring is flat and suitable for scenarios with limited axial space.

Applications: Rotating stages, automated production lines, robot joints, etc.

9. High Speed Slip Rings

Features: Designed for high-speed rotation equipment, it has the characteristics of low friction and low wear.

Applications: high-speed motors, centrifuges, turbines, etc.

10. Customized Slip Rings

Features: Customized according to customer needs to meet the requirements of special application scenarios.

Applications: aerospace, military equipment, scientific research experiments, etc.

Application areas of Slip Rings

Wind power generation: In wind turbines, slip rings are used to transmit the electricity and control signals generated by the rotation of blades.

Industrial robots: provide power and control signals for the rotating joints of robots to achieve complex movements.

Medical equipment: such as CT scanners, MRI machines, etc., used for power and signal transmission of rotating platforms.

Military equipment, such as rotating radar and missile launchers, ensures stable signal transmission.

Ocean engineering: transmitting power and communication signals in submarine cable winding systems.

The technological advantages of Slip Rings

Continuous transmission: Achieving continuous power and signal transmission between rotating and stationary components.

High reliability: Using precision materials and processes to ensure low resistance, long lifespan, and low wear.

Multi channel transmission: supports simultaneous transmission of multiple signals and power, meeting the needs of complex systems.

Environmental adaptability: Special designed slip rings such as waterproof, dustproof, and high-temperature resistant can be selected according to the application scenario.

The Future Trends of Slip Rings

Material Innovation: The application of new conductive and insulating materials enhances the performance and lifespan of slip rings.

Intelligence: Integrating sensors and monitoring systems to achieve real-time monitoring and fault warning of slip ring status.

Miniaturization: With the trend of device miniaturization, slip rings will also develop towards a more compact and lightweight direction.

Green and environmentally friendly: Reduce the use of harmful substances and promote the environmentally friendly design of slip rings.

 How to Choose the Right Slip Rings

Clear requirements: Determine the power, signal type, and bandwidth requirements for transmission.

Consider the environment: Analyze factors such as temperature, humidity, and vibration in the work environment.

Evaluate performance: Choose slip rings with low resistance, low noise, and high reliability.

Pay attention to maintenance: Choose slip rings that are easy to install, maintain, and replace to reduce operating costs.

Market prospects of Slip Rings

With the rapid development of industrial automation, robotics technology, new energy and other fields, the market demand for Slip Rings continues to grow. In the future, Slip Rings will develop towards higher performance, miniaturization, and intelligence, providing more reliable rotary transmission solutions for various industries.

 Conclusion

As a key component in electromechanical systems, the importance of Slip Rings is self-evident. By understanding 10 different types of Slip Rings components, you can better choose the slip ring product that suits your application. Whether it's aerospace, medical equipment, or industrial automation, Slip Rings provide indispensable support for the development of modern technology.
