Mini Slip Ring: Key Methods for Detecting and Evaluating Wear

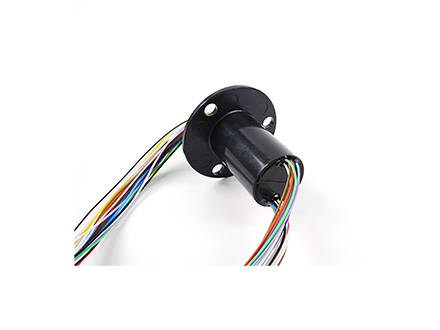

In various precision equipment, the Mini Slip Ring plays a crucial role by enabling the transmission of electrical signals or energy between rotating and stationary parts. Over time, as equipment operates, the Mini Slip Ring inevitably experiences wear, which directly affects performance and reliability. This makes accurate detection and evaluation of its wear essential for ensuring smooth operations, predicting equipment lifespan, and scheduling timely maintenance. In this article, we will delve into the most effective methods for detecting and evaluating the wear of Mini Slip Rings, alongside the relevant standards, tools, and industry best practices.

Appearance Inspection Method

Relevant standards and specifications guide comprehensive testing for wear detection. Certification bodies like CE and UL validate the quality and performance of Mini Slip Rings, ensuring they meet international standards. These certifications are vital for customers selecting high-quality Mini Slip Rings from trusted Mini Slip Ring manufacturers.

Accurately detecting and evaluating wear is crucial for preventing equipment failure. By combining appearance inspection with electrical and physical performance testing, and adhering to standards, users can gain a full understanding of wear conditions and apply effective maintenance measures to extend equipment life.

Direct Visual Observation

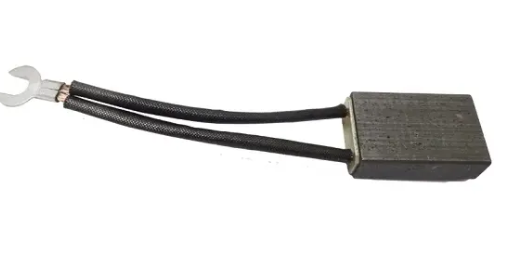

Brush Wear: As one of the most vulnerable components, the brush of a Mini Slip Ring gradually shortens with use. The brush’s length decreases over time, and when it reaches the minimum specified by the Mini Slip Ring manufacturer, it’s time for a replacement. Additionally, surface scratches or cracks may indicate material fatigue or poor surface conditions, negatively impacting performance.

Slip Ring Surface Wear: Inspect the slip ring’s surface for wear grooves caused by long-term friction. While slight grooves may not cause significant issues, deeper grooves can compromise signal transmission, causing electrical inefficiencies. Look for discoloration or oxidation, which may signal overheating or conductivity issues.

Overall Structural Integrity: In addition to checking the brush and slip ring, assess the casing for deformations or loose parts, as these could impact the functionality of the Mini Slip Ring.

Observation with Tools

Magnifying Glass: Subtle wear marks, such as tiny cracks or scratches, may be hard to spot with the naked eye. A magnifying glass (5-10x) can provide a more accurate view for effective assessment.

Industrial Endoscope: For internal wear, an industrial endoscope allows for thorough inspection of internal components, ensuring that brushes are in contact with the slip ring and checking for foreign contaminants.

Electrical Performance Test Methods

Contact Resistance Measurement

The contact resistance between the brush and slip ring is a critical indicator of wear. As the Mini Slip Ring wears, contact resistance increases, which can disrupt signal transmission. Using the four-wire method, resistance is measured, and any increase above the maximum allowable value indicates that the Mini Slip Ring is nearing the end of its lifespan.

Signal Transmission Quality Detection

Analog Signals: Measure the amplitude, frequency, and phase changes of an analog signal during transmission. Significant distortion or attenuation indicates that wear is affecting the quality of signal transmission.

Digital Signals: The bit error rate of digital signals should remain minimal. An elevated bit error rate signals that wear is interfering with reliable signal transmission.

Insulation Resistance Test

Wear may degrade the insulating material between components, reducing insulation resistance. Use an insulation resistance tester to verify that the resistance remains within the manufacturer's specifications, as any decline in resistance can lead to electrical faults or short circuits.

Physical Property Testing Methods

Wear Measurement

Measuring Tools: Regular use of calipers and micrometers to measure the length of the brush or the outer diameter of the slip ring can detect wear. These measurements are compared with initial values to determine the extent of wear.

Laser Measurement Technology: For high-precision wear analysis, laser technology provides accurate 3D measurements of parts that are difficult to inspect with traditional tools.

Hardness Test

The hardness of the brush and slip ring materials may change over time. By using Vickers hardness testing, manufacturers can detect any material degradation caused by wear. A decrease in hardness suggests that the materials may be losing their resistance to further wear.

Roughness Measurement

Surface roughness can increase with wear, leading to uneven distribution of contact pressure and accelerated wear. Regular roughness measurements can help identify when maintenance is required.

Data Analysis and Modeling-Based Evaluation Methods

Statistical Data Analysis

Collecting wear data from Mini Slip Rings under various operating conditions helps identify trends and predict future wear. Using statistical tools like linear regression, manufacturers can create predictive models that estimate the remaining lifespan of the Mini Slip Ring, based on historical wear data.

Physical Modeling

Physical models, based on tribology and wear mechanisms, help quantify wear rates and guide maintenance decisions. These models can be validated through experimental data to provide accurate predictions for wear under specific conditions.

Machine Learning Algorithms

Advanced machine learning techniques, such as support vector machines (SVM) or artificial neural networks (ANN), allow for the analysis of large datasets to quickly assess wear levels in Mini Slip Rings. These algorithms continuously learn from new data to improve wear predictions and maintenance strategies.

Standards and Specifications for Detection and Evaluation

Industry Standards

Organizations like the International Electrotechnical Commission (IEC) and Chinese industry standards regulate the testing of electrical, mechanical, and environmental properties of Mini Slip Rings. Manufacturers must adhere to these standards to ensure the reliability and safety of their products.

Internal Standards of Manufacturers

Leading Mini Slip Ring manufacturers establish their own internal standards that are often stricter than general industry guidelines. These standards are especially critical for Mini Slip Rings used in high-reliability applications such as aerospace and medical devices.

Testing Agencies and Certification

To ensure the accuracy and credibility of testing, third-party testing agencies offer comprehensive evaluation services. These agencies provide independent certification of a Mini Slip Ring’s performance, giving users confidence in their equipment’s reliability.
