Electrical Swivel Joint: A technical means to improve the protection level

In modern industrial and technological applications, the reliability and stability of Electrical Swivel Joints are crucial. These components facilitate the transmission of electrical signals or energy between rotating and stationary parts, making their protection level vital for ensuring continuous and efficient operation. The protection level directly impacts the ability of Electrical Swivel Joints to function in complex environments, preventing contamination from dust, moisture, and oil, and safeguarding against internal short circuits, corrosion, and other failures. This article delves into several technical strategies that Electrical Swivel Joint manufacturers use to improve protection levels.

Material Selection and Optimization

Shell Material

Metal Materials: Metal materials, known for their high strength and wear resistance, are commonly used to manufacture the shells of Electrical Swivel Joints. Aluminum alloys, such as 6061, are lightweight, corrosion-resistant, and exhibit superior mechanical properties. For industries with higher protection requirements, like aerospace, titanium alloys are preferred. Their high strength, low density, and outstanding corrosion resistance ensure optimal protection in the harshest environments.

Engineering Plastics: Polycarbonate (PC) and polyetheretherketone (PEEK) are widely used engineering plastics in Electrical Swivel Joint manufacturing. PC offers excellent insulation, dimensional stability, and impact resistance, while PEEK provides high-temperature resistance and chemical durability, ensuring reliability in extreme conditions.

Internal Insulation Materials

High-Performance Insulating Paints: Insulating varnishes, such as silicone-based coatings, enhance the Electrical Swivel Joint's insulation and protection, preventing moisture and chemical corrosion. Silicone insulating varnishes perform well in high-temperature environments, offering a safe operational range above 200℃.

Insulating Films: Polyimide films are commonly used for Electrical Swivel Joints due to their superior thermal resistance, radiation tolerance, and insulation properties. These films help safeguard the internal components by providing enhanced insulation. In more cost-sensitive applications, polyester films also serve as efficient alternatives.

Sealing Materials

Rubber Seals: Nitrile rubber (NBR) and fluororubber (FKM) are frequently employed to seal Electrical Swivel Joints. NBR offers resistance to petroleum-based oils and solvents, while FKM performs well in high-temperature and chemically aggressive environments, providing long-lasting sealing solutions.

Silicone Rubber Seals: Silicone rubber is ideal for sealing in wide temperature ranges, from -50℃ to 250℃. Its excellent ozone and electrical insulation properties make it suitable for diverse applications, including medical equipment and high-demand industrial environments.

Structural Design Optimization

Overall Structure

Closed Structure: One of the most effective ways to enhance the protection of Electrical Swivel Joints is through a closed structure. This design prevents external pollutants from entering the joint, minimizing the risk of contamination. By integrating a shell design and using seals or sealing rings, manufacturers can improve the overall protection level of the Electrical Swivel Joint.

Optimized Protective Shell Shape: A streamlined shell design reduces dust and moisture accumulation, while rounded corners prevent the buildup of contaminants at sharp edges, thus improving protection.

Internal Structure Design

Optimized Circuit Layout: A well-organized circuit layout ensures sensitive components are shielded from potential exposure to contaminants. Separating the power supply circuit from the signal processing circuit can also help prevent electromagnetic interference, optimizing the operational stability of the Electrical Swivel Joint.

Isolation Design: Isolation techniques, such as isolating different channels with protective layers, help minimize cross-contamination and reduce the risk of electrical interference or failure.

Connection Structure Design

Sealed Connections: Using sealed joints and cables to connect Electrical Swivel Joints with external equipment ensures that pollutants are kept at bay. Rubber sealing rings and sealants can be used to achieve tight seals, thus preventing external contaminants from entering.

Anti-Loosening Design: To maintain sealing effectiveness under conditions of vibration and impact, anti-loosening designs, such as locking nuts and spring washers, are employed to secure connections.

Sealing Technology Applications

Static Sealing Technology

O-Ring Sealing: O-rings provide a cost-effective sealing solution for Electrical Swivel Joints. The material selection should depend on factors such as working pressure, temperature, and medium exposure.

Sealant Sealing: Sealants fill minute gaps between surfaces to create an effective seal. Depending on the application, silicone or epoxy sealants may be used to withstand extreme temperatures or chemical exposure.

Dynamic Sealing Technology

Lip Seals: Lip seals are commonly used to prevent leakage between rotating shafts and stationary parts. They are ideal for Electrical Swivel Joints that experience frequent motion, offering reliable sealing while minimizing friction-related wear.

Labyrinth Seals: Labyrinth seals form a tortuous path that traps contaminants, effectively preventing their ingress. These seals are beneficial in environments where low wear and long life are critical.

Multiple Sealing Technology

Combined Sealing: In high-performance Electrical Swivel Joints, multiple sealing technologies are often employed. For example, lip seals combined with labyrinth seals provide enhanced protection by preventing contaminants from entering while reducing wear.

Multi-Stage Sealing: Multi-stage sealing involves layering various sealing methods, such as using sealants, O-rings, and sealing joints. This layered defense ensures maximum protection against environmental pollutants.

Surface Treatment Technology

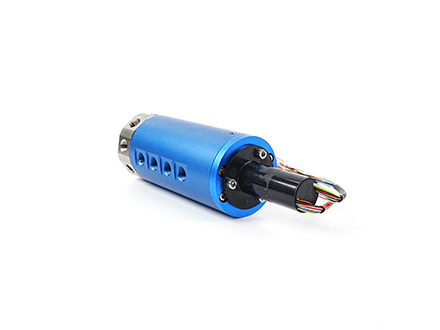

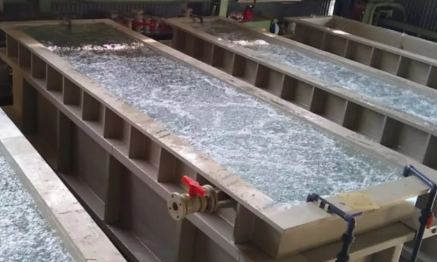

Electroplating Treatment

Galvanizing and Nickel Plating: Galvanizing provides corrosion resistance by forming a zinc coating, while nickel plating enhances both conductivity and corrosion resistance, making it ideal for conductive parts within Electrical Swivel Joints.

Coating Treatment

Anti-Corrosion Coatings: Epoxy resin and polyurethane coatings offer excellent resistance to chemical corrosion and wear, enhancing the durability of Electrical Swivel Joints in harsh conditions.

Triple-Proof Coating: Triple-proof coatings provide moisture, mildew, and salt spray resistance, further safeguarding sensitive components within Electrical Swivel Joints.

Passivation Treatment

Metal Passivation and Surface Oxidation: Passivation processes, such as anodizing, improve the corrosion resistance of materials like aluminum, ensuring that Electrical Swivel Joints maintain their protective capabilities even in challenging environments.

Protection Level Testing and Verification

Testing Standards

IP Protection Level Testing: The IP protection level is essential for assessing the effectiveness of the Electrical Swivel Joint's sealing capabilities. Conducting IP tests ensures that the device meets industry standards for dust and water resistance

Testing Methods

Laboratory Simulation and Practical Tests: Laboratory tests, such as salt spray, wet heat, and dust chamber tests, simulate environmental conditions, while practical application tests provide real-world insights into the Electrical Swivel Joint’s performance.

Data Analysis and Improvements

Continuous Improvement: By analyzing test data, manufacturers can identify areas for improvement, such as enhancing sealing or material selection, to ensure the Electrical Swivel Joint consistently meets the required protection standards.
