Wind Turbine Generator Slip Ring

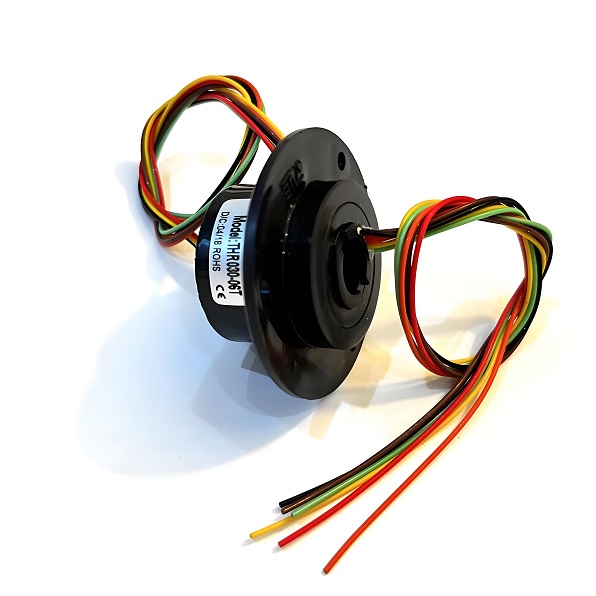

The Wind Turbine Generator Slip Ring is an electrical rotary connector designed specifically for wind power generation systems. It can transmit power, signals, and data between the rotating and fixed components of the wind turbine, ensuring the stable operation of the wind power generation system. Wind turbine Slip Rings are usually composed of conductive rings, electric brushes, insulation materials, shells, and other parts, and have the characteristics of compact structure, high transmission efficiency, and high reliability.

2、 Characteristics and Data

High conductivity:

Features: The slip ring of the wind turbine is made of highly conductive materials (such as copper, silver, or their alloys) to ensure efficient power transmission.

Data: The conductivity of conductive rings is usually as high as millions of Siemens per meter (S/m), which can effectively reduce energy loss during transmission.

Wear resistant brush design:

Features: The electric brush is made of wear-resistant and conductive materials (such as carbon graphite, precious metal alloys, etc.) to ensure long-term stable contact and reduce wear.

Data: The service life of electric brushes can usually reach tens of thousands to hundreds of thousands of rotations, reducing the frequency of maintenance and replacement.

Multi channel transmission:

Features: The slip ring of the wind turbine supports multi-channel transmission, which can simultaneously transmit power, signals, and data to meet the needs of complex systems.

Data: According to actual needs, the number of channels for Slip Rings can be customized, usually ranging from a few to dozens.

High speed rotation capability:

Features: The slip ring of the wind turbine can maintain stable transmission performance under high-speed rotation, ensuring the normal operation of the wind power generation system.

Data: The maximum rotational speed of Slip Rings can usually reach several thousand revolutions per minute (rpm), meeting the high-speed rotation requirements of wind turbines.

High protection level:

Features: The casing and sealing design of the slip ring have a good level of protection, which can withstand the impact of harsh environments such as sand, moisture, high temperature, etc.

Data: The protection level of slip rings usually reaches IP65 or higher, ensuring stable operation even in harsh environments.

Easy to install and maintain:

Characteristics: The design of wind turbine slip rings considers the convenience of installation and maintenance, usually with standardized interfaces and easy to disassemble structures.

Data: The installation and maintenance time is usually short, reducing downtime and maintenance costs.

3、 Application scenarios

The slip ring of wind turbines plays a crucial role in the wind power generation system. It is mainly used in the following scenarios:

Connection between wind turbine blades and tower:

Slip rings transmit power and signals between wind turbine blades and towers, ensuring stable rotation of the blades and real-time transmission of data to the control system.

Connection of wind turbine yaw system:

The yaw system is used to adjust the direction of the wind turbine so that it always faces the wind direction. Slip rings transmit power and signals in the yaw system to ensure its normal operation.

Connection of wind turbine pitch system:

The pitch system is used to adjust the angle of wind turbine blades to optimize power generation efficiency. Slip rings transmit power and signals in the pitch system, ensuring that the blades can be adjusted according to the predetermined angle.

Connection of wind turbine control system:

Slip rings transmit power and signals in the wind turbine control system, ensuring that the control system can monitor the operating status of the wind turbine in real time and make adjustments.

4、 Maintenance and upkeep

In order to ensure the long-term stable operation of wind turbine slip rings, regular maintenance and upkeep are necessary. Here are some suggestions for maintenance and upkeep:

Regularly check the wear of the slip ring:

Regularly check the wear of the brushes and conductive rings of the slip ring. If there is severe wear or damage, they should be replaced in a timely manner.

Clean the surface of the slip ring:

Regularly use a soft cloth or specialized cleaning agent to clean the surface of the slip ring, remove dust and dirt, and keep the slip ring clean and dry.

Check the electrical connections of the slip ring:

Regularly check whether the electrical connections of the slip ring are secure and reliable. If there is any looseness or poor contact, the connectors should be tightened or replaced in a timely manner.

Check the protection level of the slip ring:

Regularly check whether the casing and sealing components of the slip ring are intact. If there is any damage or aging, they should be replaced in a timely manner to ensure that the protection level of the slip ring meets the requirements.

Avoid excessive vibration and impact:

During the operation of wind turbines, avoid excessive vibration and impact on the slip ring to ensure its stable operation.

Record the usage of the slip ring:

Record key parameters such as the usage time and number of rotations of the slip ring, in order to promptly identify and address potential issues with the slip ring.

Contact professional maintenance personnel:

If encountering complex problems or requiring professional maintenance, it is necessary to promptly contact professional maintenance personnel for handling to ensure the normal operation of the slip ring.
