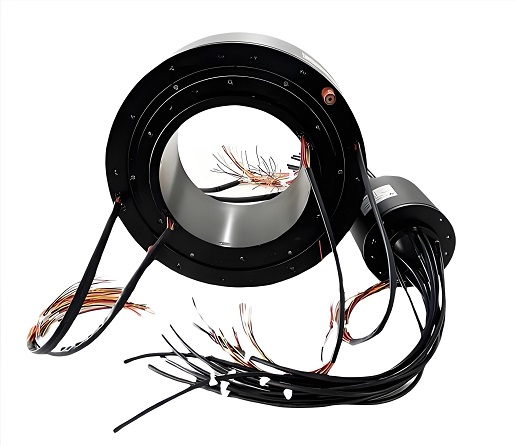

Standard Slip Ring

Standard Slip Ring is an electrical connector designed to transmit power, signals, and data between rotating and fixed components. It is usually composed of conductive rings, electric brushes, insulation materials, shells, and other parts, which can maintain stable electrical connections during rotation and ensure continuous signal transmission.

2、 Characteristics

High conductivity:

Standard Slip Rings are made of highly conductive materials such as copper, silver, or their alloys to ensure efficient power transmission. The conductivity of conductive rings is usually as high as millions of Siemens per meter (S/m), which can effectively reduce energy loss during transmission.

Wear resistant brush design:

Electric brushes are key components in Slip Rings, responsible for maintaining contact with conductive rings during rotation. The brushes of standard Slip Rings are usually made of wear-resistant and conductive materials (such as carbon graphite, precious metal alloys, etc.) to ensure long-term stable contact and reduce wear. The service life of electric brushes can usually reach tens of thousands to hundreds of thousands of rotations, depending on the usage environment and maintenance conditions.

Multi channel transmission:

Standard slip rings support multi-channel transmission and can simultaneously transmit various types of signals and data. This enables it to meet the needs of complex systems, such as simultaneous transmission of power, analog signals, digital signals, high-frequency signals, etc. The number of channels can be customized according to actual needs, usually ranging from a few to dozens.

High speed rotation capability:

Standard slip rings can maintain stable transmission performance under high-speed rotation. Its maximum rotational speed can usually reach several thousand revolutions per minute (rpm), depending on the model and specifications of the slip ring. This makes it suitable for various high-speed rotating equipment, such as wind turbines, rotating stages, robots, etc.

High protection level:

The shell and sealing design of standard slip rings have a good level of protection and can withstand the effects of harsh environments such as dust, humidity, high temperature, etc. Its protection level usually reaches IP65 or higher, ensuring stable operation even in harsh environments.

Easy to install and maintain:

The design of standard slip rings takes into account the convenience of installation and maintenance. It usually has standardized interfaces and an easy to disassemble structure, making the installation and maintenance process simpler and faster. In addition, some slip rings are equipped with replaceable brush components, further reducing maintenance costs.

3、 Application scenarios

Industrial automation:

In the field of industrial automation, standard slip rings are widely used in various rotating equipment, such as robot joints, rotating workbenches, automated production lines, etc. It can stably transmit power and signals during the rotation process, ensuring the normal operation and efficient production of the equipment.

Aerospace:

In the aerospace field, standard slip rings are used to transmit power and signals for aircraft. It can maintain stable transmission performance in high-speed rotation and extreme environments, ensuring the safe and reliable operation of the aircraft.

Medical equipment:

In medical equipment, standard slip rings are used to transmit power and signals for medical devices. For example, in large medical equipment such as CT machines and MRI machines, slip rings can ensure a stable connection between rotating and fixed components, thereby providing high-quality images and data.

Security monitoring:

In the field of security monitoring, standard slip rings are used to transmit power and signals to monitoring cameras. It can maintain stable transmission performance during the rotation of the camera, ensuring the clarity and continuity of the monitoring image.

Other fields:

In addition to the above fields, standard slip rings are also widely used in military equipment, communication equipment, testing instruments, and other fields. It can provide stable and reliable transmission performance in various complex environments, meeting various application requirements.

4、 Maintenance methods

Regular inspection:

Regularly inspect standard slip rings, including checking the wear of conductive rings and brushes, inspecting the integrity of the housing and seals, and checking the tightness of electrical connections. Timely identify and address potential issues to ensure the normal operation of the slip ring.

Cleaning and maintenance:

Regularly clean the surface and interior of the slip ring to remove dust and dirt. Use a soft cloth or specialized cleaning agent for cleaning, avoiding the use of overly strong solvents or brushes to prevent damage to the slip ring surface.

Lubrication and maintenance:

Regularly add or replace lubricants based on the usage of the slip ring. Lubricants can reduce friction and wear between electric brushes and conductive rings, and improve the service life of slip rings.

Avoid excessive vibration and impact:

During use, avoid excessive vibration and impact on the slip ring. Ensure that the slip ring is installed on a stable and reliable bracket to reduce damage to the slip ring from vibration and impact.

Professional maintenance:

For complex or high demand slip ring maintenance tasks, it is recommended to hire professional maintenance personnel for operation. They have rich experience and professional tools to ensure the maintenance quality and safety of slip rings.

Record usage:

Record key parameters such as the usage time and number of rotations of the slip ring, in order to promptly identify and address potential issues with the slip ring. Meanwhile, these records can also provide reference for the maintenance and replacement of slip rings.
