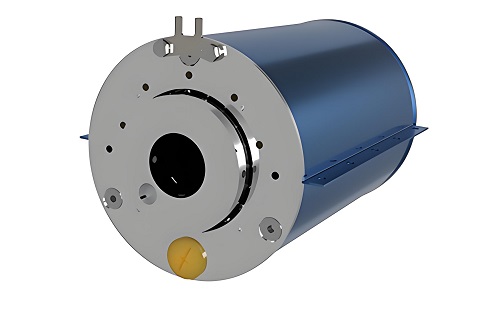

Small Electrical Slip Ring

A small electrical Slip Ring is a well-designed electrical connector that can stably transmit power and signals between rotating and fixed components. It is usually composed of key components such as conductive rings, electric brushes, insulation materials, and casings, and has the advantages of small size, light weight, and high transmission efficiency. Small electrical Slip Rings are widely used in various small rotating equipment, providing power and signal support for the normal operation of the equipment.

2、 Characteristics

Small size and light weight:

Small electrical Slip Rings are usually smaller in volume than traditional slip rings, lighter in weight, and easier to install and carry. For example, some miniature conductive slip rings have an inner diameter of only a few millimeters, an outer diameter of no more than tens of millimeters, and a weight of only a few grams to tens of grams. This compact design enables small Electrical Slip Rings to be suitable for various space constrained situations.

High transmission efficiency:

Small electrical slip rings use conductive rings and brushes made of highly conductive materials to ensure stable transmission of power and signals. Its transmission efficiency is usually over 90%, which can meet various high-precision and high-frequency transmission needs. At the same time, small electrical slip rings also support multi-channel transmission, which can simultaneously transmit various types of signals and data.

Wear resistant and durable:

The electric brushes of small electrical slip rings are usually made of wear-resistant and conductive materials, such as carbon graphite, precious metal alloys, etc. These materials have good wear resistance and corrosion resistance, ensuring stable contact performance of the electric brush during long-term use. Therefore, the service life of small electrical slip rings is usually longer, reaching tens of thousands to hundreds of thousands of rotations.

Low electrical noise:

Small electrical slip rings adopt various noise reduction technologies in the design and manufacturing process, such as optimizing the contact between the conductive ring and the electric brush, and using low-noise materials. These measures reduce the electrical noise generated by small electrical slip rings during power and signal transmission, ensuring signal clarity and stability.

High protection level:

The casing and sealing design of small electrical slip rings have a good level of protection and can withstand the effects of harsh environments such as dust, humidity, high temperatures, etc. Its protection level usually reaches IP65 or higher, ensuring stable operation even in harsh environments.

Easy to install and maintain:

The design of small electrical slip rings considers the convenience of installation and maintenance. It usually has standardized interfaces and an easy to disassemble structure, making the installation and maintenance process simpler and faster. In addition, some small electrical slip rings are equipped with replaceable brush components, further reducing maintenance costs.

3、 Application scenarios

Industrial robot:

Small electrical slip rings have a wide range of applications in the field of industrial robots. It can achieve continuous transmission of power and signals at the joints of the robot, ensuring that the robot can stably receive power supply and command signals from the controller during rotation. This helps to improve the flexibility and stability of robots, and enhance production efficiency.

Security monitoring:

In the field of security monitoring, small electrical slip rings are used to transmit power and signals to monitoring cameras. It can maintain stable transmission performance during the rotation of the camera, ensuring the clarity and continuity of the monitoring image. This helps to improve the reliability and stability of security monitoring systems.

Medical equipment:

Small electrical slip rings are also widely used in medical equipment. For example, in large medical equipment such as CT machines and MRI machines, small electrical slip rings can ensure stable connections between rotating and fixed components, providing high-quality images and data. This helps to improve the diagnostic accuracy and treatment effectiveness of medical equipment.

Aerospace:

In the aerospace field, small electrical slip rings are used to transmit power and signals for aircraft. It can maintain stable transmission performance in high-speed rotation and extreme environments, ensuring the safe and reliable operation of the aircraft. This helps to improve the performance and reliability of aerospace equipment.

Other fields:

In addition to the above fields, small electrical slip rings are also widely used in military equipment, communication equipment, testing instruments, and other fields. It can provide stable and reliable transmission performance in various complex environments, meeting various application requirements.

4、 Maintenance methods

Regular inspection:

Regularly inspect small electrical slip rings, including checking the wear of conductive rings and brushes, inspecting the integrity of the housing and seals, and checking the tightness of electrical connections. Timely identify and address potential issues to ensure the normal operation of the slip ring.

Cleaning and maintenance:

Regularly clean the surface and interior of small electrical slip rings to remove dust and dirt. Use a soft cloth or specialized cleaning agent for cleaning, avoiding the use of overly strong solvents or brushes to prevent damage to the slip ring surface. At the same time, ensure that the slip ring is in a dry and ventilated environment, avoiding prolonged exposure to humid or corrosive environments.

Lubrication and maintenance:

Regularly add or replace lubricants based on the usage of small electrical slip rings. Lubricants can reduce friction and wear between electric brushes and conductive rings, and improve the service life of slip rings. Choose the appropriate lubricant and add or replace it according to the manufacturer's recommendations.

Avoid excessive vibration and impact:

During use, avoid excessive vibration and impact on small electrical slip rings. Ensure that the slip ring is installed on a stable and reliable bracket to reduce damage to the slip ring from vibration and impact. At the same time, avoid using slip rings in extreme temperature or humidity environments to avoid affecting their performance and service life.

Professional maintenance:

For complex or high demand slip ring maintenance tasks, it is recommended to hire professional maintenance personnel for operation. They have rich experience and professional tools to ensure the maintenance quality and safety of slip rings. Meanwhile, follow the manufacturer's maintenance guidelines and recommendations to ensure the long-term stable operation of the slip ring.

Record usage:

Record key parameters such as usage time and rotation frequency of small electrical slip rings, in order to promptly identify potential problems with the slip rings and take appropriate measures. Meanwhile, these records can also provide reference for the maintenance and replacement of slip rings.
