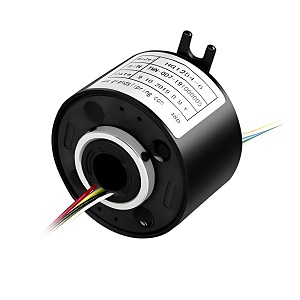

Propeller Slip Ring

Propeller Slip Ring is a precision power transmission device specifically designed for use in propeller drive systems. It can achieve smooth transmission of current, data signals, images, and power between the propeller and fixed components during rotation, and is a key component in applications such as underwater vehicles and ship propulsion systems.

1、 Characteristics of propeller slip ring

Excellent electrical performance

High conductivity: The propeller slip ring is made of highly conductive materials (such as copper, silver, etc.) to ensure that the loss of current and signal during transmission is minimized. Its resistivity is usually below 10 ^ -8 Ω· m, ensuring efficient power transmission.

Multi channel transmission: The propeller slip ring supports multi-channel signal transmission, including encoder signals, mid to high frequency signals, bus control signals, etc., to meet the needs of complex systems. The number of channels for some high-end propeller Slip Rings can reach hundreds, greatly improving the flexibility and efficiency of data transmission.

High stability: During the rotation of the propeller slip ring, the contact resistance between the contact ring and the brush changes very little, usually less than 1 m Ω, ensuring stable signal transmission. In addition, it has strong resistance to vibration and impact, and can maintain normal operation in harsh environments.

Wear resistant and durable

Long lifespan: The propeller slip ring is made of wear-resistant materials (such as alloy steel, silicon carbide, etc.) and precision craftsmanship, which can withstand long-term rotation and friction. Its service life can usually reach tens of thousands of hours, or even longer.

High reliability: The propeller slip ring undergoes rigorous testing and screening during the design and manufacturing process to ensure its reliable quality. Its failure rate is extremely low, usually below 0.01%, providing strong support for the stable operation of the system.

Flexible customization

Multiple specifications: The propeller slip ring can be customized according to customer needs, including size, number of channels, transmission speed, etc. This enables it to be widely applied in different types of propeller drive systems.

Easy to install: The installation and disassembly process of propeller Slip Rings is simple and fast, without the need for complex tools and steps. This reduces the maintenance and time costs of the system.

Strong environmental adaptability

Waterproof and dustproof: The propeller slip ring usually adopts a sealed design, which can effectively prevent the intrusion of moisture and dust. Its protection level usually reaches IP67 or higher, ensuring normal operation in underwater or humid environments.

High and low temperature resistance: The propeller slip ring can operate normally under extreme temperatures, with a working temperature range typically ranging from -40 ℃ to+80 ℃ (or higher), meeting the application requirements in different environments.

2、 Application scenarios of propeller Slip Rings

Due to its unique performance advantages, propeller slip rings are widely used in various equipment that requires rotational motion, especially in underwater vehicles and ship propulsion systems. Here are some typical application scenarios:

Underwater vehicle

The propeller slip ring can be used in the propeller drive system of underwater vehicles to achieve smooth transmission of electrical energy and signals. This enables underwater vehicles to move freely underwater and perform various tasks.

In fields such as deep-sea exploration and underwater rescue, the high reliability and long lifespan of propeller slip rings are particularly important. It ensures the stable operation of underwater vehicles in harsh environments, improving the success rate and safety of missions.

ship propulsion system

The propeller slip ring can be used in the propulsion system of ships to achieve the transmission of electrical energy and signals between the propeller and the engine. This improves the propulsion efficiency and maneuverability of the vessel.

In large cargo ships, oil tankers and other vessels, the wear resistance and high reliability of propeller slip rings are particularly important. It ensures the stable operation of ships during long-term navigation, reducing maintenance and time costs.

Other rotating equipment

In addition to underwater vehicles and ship propulsion systems, propeller slip rings can also be used in other equipment that requires rotational motion, such as wind power generation equipment, security ball machines, robots, etc. In these applications, propeller slip rings also play a crucial role in ensuring the normal operation and stable performance of the equipment.

3、 Maintenance methods for propeller slip rings

The maintenance of propeller slip rings is crucial for extending their service life and maintaining system performance. Here are some common maintenance methods:

regular inspection

Regularly inspect the propeller slip ring, including visual inspection, electrical performance inspection, etc. This helps to promptly identify and address potential issues, preventing malfunctions from occurring.

During inspection, special attention should be paid to the wear between the contact ring of the slip ring and the brush. If the wear is severe, new components should be replaced in a timely manner.

Cleaning and maintenance

Regularly clean the propeller slip ring to remove surface dirt and dust. This helps maintain good electrical contact and heat dissipation performance.

When cleaning, a soft cloth or brush should be used to avoid using hard objects such as metal brushes to avoid scratching the surface of the slip ring.

lubricating maintenance

Lubrication and maintenance of propeller slip rings can reduce friction and wear, and extend their service life. However, it should be noted that excessive lubrication may actually accelerate wear, so appropriate lubricants and lubrication cycles should be selected.

The selection of lubricant should be determined based on the material and working environment of the slip ring. Usually, solid lubrication techniques (such as molybdenum disulfide coatings) and wide temperature range lubricants (such as perfluoropolyethers) are better choices.

The lubrication cycle should be determined based on the usage and working environment of the slip ring. In ordinary industrial environments, it is sufficient to replenish lubricants every 2 years or 20000 hours; In high temperature/high humidity environments, the lubrication status should be checked every 1 year or 10000 hours.

environmental control

Keep the environment where the propeller slip ring is located dry and clean, avoiding the intrusion of moisture and dust. This helps prevent the occurrence of electrical and mechanical failures.

If the propeller slip ring is in a harsh environment (such as high temperature, high humidity, high dust, etc.), corresponding protective measures should be taken, such as installing dust covers, using sealed designs, etc.

Professional maintenance

For high-end propeller slip rings or slip rings in important equipment, regular professional maintenance should be carried out. This includes electrical performance testing, mechanical performance testing, etc. to ensure the stable and reliable performance of the slip ring.

Professional maintenance should be carried out by maintenance personnel with relevant qualifications and experience to ensure maintenance quality and safety.
