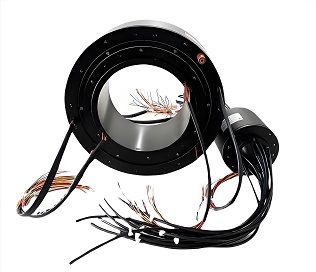

Platter Slip Ring

Platter Slip Ring is a precision power transmission device designed for use in a turntable or rotating platform. It can achieve smooth transmission of current, data signals, images, and power between the turntable and fixed components while the turntable continues to rotate, without interrupting the rotational motion.

2、 Characteristics of Rotary Slip Ring

The Rotary Slip Ring has various characteristics, and the following is a description of each characteristic and its corresponding professional data:

high conductivity

The conductive ring of the turntable slip ring is usually made of highly conductive materials such as copper, silver, or alloys. These materials have low electrical resistivity, typically below 10 ^ -8 Ω· m, ensuring that the loss of current during transmission is minimized. In addition, the surface of the conductive ring is specially treated, such as gold plating or silver plating, to improve its conductivity and corrosion resistance.

Multi-channel transmission

The turntable slip ring supports multi-channel signal transmission, including analog signals, digital signals, high-frequency signals, etc. According to application requirements, the number of channels for the turntable slip ring can range from a few to several hundred. For example, some high-end turntable Slip Rings have up to 256 channels that can simultaneously transmit multiple types of signals and data. This enables the turntable slip ring to meet the requirements of complex systems, achieving efficient data transmission and communication.

HIGH STABILITY AND RELIABILITY

In the design and manufacturing process of the turntable slip ring, precision technology and materials are used to ensure its high stability and reliability. The contact resistance between the conductive ring and the brush changes very little, usually less than 1 m Ω, ensuring stable signal transmission. In addition, the turntable slip ring also has anti vibration and anti impact capabilities, which can maintain normal operation in harsh environments. Its failure rate is extremely low, usually below 0.01%, providing strong support for the stable operation of the system.

Wear resistant and durable

The brush of the turntable slip ring is usually made of wear-resistant materials, such as carbon brushes, metal brushes, or alloy brushes. These materials can withstand long-term friction and wear, ensuring that the turntable slip ring can still maintain good electrical connection during long-term use. In addition, the contact area between the brush and the conductive ring is large, which can disperse friction and heat, further extending the service life of the turntable slip ring.

Strong environmental adaptability

The rotary slip ring has excellent environmental adaptability and can work normally in various harsh environments. For example, it can withstand extreme environmental conditions such as high temperature, low temperature, humidity, and corrosion. The casing of the turntable slip ring usually adopts a sealed design, which can effectively prevent the invasion of moisture, dust, and dirt. Its protection level usually reaches IP67 or higher, ensuring the reliability and stability of the turntable slip ring in harsh environments.

3、 Application scenarios of rotary slip rings

Rotary slip rings have been widely used in various fields due to their unique design and superior performance. The following are some typical application scenarios of turntable slip rings:

Radar and antenna system

In radar and antenna systems, the turntable slip ring is used to achieve electrical connection between the antenna and fixed components. When the antenna rotates, the turntable slip ring can ensure smooth transmission of current and data signals, thereby achieving normal operation and target detection of the radar system. The high stability and reliability of the turntable slip ring are crucial for the performance of the radar system.

Medical imaging equipment

In medical imaging equipment, turntable slip rings are commonly used to establish electrical connections between rotating components (such as the rotating frame of a CT scanner) and fixed components. The turntable slip ring can transmit various types of signals and data, including image data, control signals, etc. This enables medical imaging equipment to achieve high-precision image acquisition and diagnosis.

Industrial Automation and Robotics Systems

In industrial automation and robot systems, turntable slip rings are used to achieve electrical connections and data transmission between rotating and fixed components. For example, on an automated production line, the turntable slip ring can transmit sensor signals, control signals, etc. to rotating components, thereby achieving normal operation and monitoring of the automated production line. The multi-channel transmission capability and high stability of the rotary slip ring make it a key component in industrial automation and robot systems.

Aerospace and Defense Fields

In the aerospace and defense fields, rotary slip rings are used to achieve electrical connections and data transmission between rotating components of aircraft (such as radar antennas, missile launchers, etc.) and fixed components. The high reliability and environmental adaptability of rotary slip rings make them an important component in the aerospace and defense fields.

4、 Maintenance methods for turntable slip rings

In order to ensure the long-term stable operation and extend the service life of the turntable slip ring, regular maintenance and upkeep are required. Here are some common maintenance methods for turntable slip rings:

regular inspection

Regularly inspect the slip ring of the turntable, including visual inspection, electrical performance inspection, etc. During inspection, special attention should be paid to the wear between the conductive ring and the brush, as well as the integrity of the housing and support structure. If any abnormalities or damages are found, they should be replaced or repaired in a timely manner.

Cleaning and maintenance

Regularly clean the slip ring of the turntable to remove surface dirt and dust. Soft cloth or brush can be used for cleaning, avoiding the use of hard objects such as metal brushes to avoid scratching the surface. When cleaning, be careful not to splash water or corrosive liquids onto the turntable slip ring to avoid damaging its electrical performance and structural integrity.

lubricating maintenance

Lubrication and maintenance of the turntable slip ring can reduce friction and wear, and extend its service life. Choose the appropriate lubricant (such as solid grease or liquid lubricant) for lubrication, and determine the lubrication cycle based on usage and working environment. During the lubrication process, care should be taken not to apply lubricant to the contact surface between the conductive ring and the brush to avoid affecting the electrical connection performance.

environmental control

Keep the environment where the turntable slip ring is located dry and clean, avoiding the intrusion of moisture, dust, and dirt. If the turntable slip ring is in a harsh environment (such as high temperature, high humidity, high dust, etc.), corresponding protective measures should be taken, such as installing dust covers, using sealed designs, etc. In addition, attention should be paid to controlling the working temperature of the turntable slip ring to avoid adverse effects on its performance caused by overheating or overcooling.

Professional maintenance

For high-end turntable slip rings or turntable slip rings in important equipment, regular professional maintenance should be carried out. This includes electrical performance testing, mechanical performance testing, etc. to ensure the stable and reliable performance of the turntable slip ring. Professional maintenance should be carried out by maintenance personnel with relevant qualifications and experience to ensure maintenance quality and safety.
