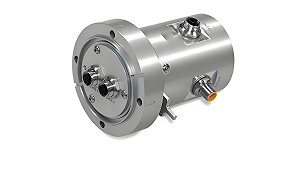

Metal Slip Ring

A metal Slip Ring is an electrical connection device that transmits current, signals, or data between rotating and fixed components. It is made of metal conductive materials inside, which can maintain stable electrical connections during rotation and achieve continuous signal transmission.

1、 Definition

Metal Conductive Slip Ring is an electrical component designed specifically for rotating bodies, aimed at connecting and transmitting energy and signals. It consists of two core parts: rotating and stationary. The rotating part (rotor) is connected to the rotating structure of the equipment and moves with it, while the stationary part (stator) is responsible for connecting the energy source of the fixed structure. Metal conductive Slip Rings utilize the conductive properties of metal materials to establish stable electrical connections between rotating and fixed components, enabling continuous transmission of current, signals, or data.

2、 Characteristics

High conductivity:

Metal conductive Slip Rings are made of high-quality metal materials such as copper, silver, gold, etc., which have extremely high conductivity. For example, the conductivity of copper is about 5.8 × 107 S/m, and the conductivity of silver is even higher, about 6.3 × 107 S/m. This makes the metal conductive slip ring have extremely low resistance and loss when transmitting current or signals, ensuring the stability and efficiency of transmission.

Wear resistant and corrosion-resistant:

The contact surface of metal conductive slip rings is usually made of wear-resistant and corrosion-resistant materials, such as gold plating, silver plating, or special alloys. These materials have extremely high hardness and corrosion resistance, and can maintain stable contact performance during long-term use. For example, the hardness of gold plating can reach HB100 or above, with extremely strong corrosion resistance, and can be used for a long time in harsh environments without damage.

Long lifespan:

The design of metal conductive slip rings gives them an extremely long service life. By optimizing the material and structure of the contact surface, as well as adopting advanced manufacturing processes, metal conductive slip rings can operate stably in high-speed and high load environments, with a lifespan of tens of thousands of rotations or more. This greatly reduces the maintenance cost and replacement frequency of the equipment.

Multi channel transmission:

Metal conductive slip rings support multi-channel transmission and can simultaneously transmit multiple currents, signals, or data. This gives it significant advantages in situations where multiple types of information need to be transmitted simultaneously. For example, in wind power generation systems, metal conductive slip rings can simultaneously transmit power, control signals, and data signals, achieving intelligent control and remote monitoring of wind turbines.

Compact structure and easy installation:

The metal conductive slip ring has a compact structure, small size, and is easy to install and disassemble. Its design enables it to adapt to various complex installation environments, such as confined spaces, high temperature and high pressure environments, etc. Meanwhile, the interface of metal conductive slip rings usually adopts standardized design, which facilitates connection and integration with other electrical components.

Low electrical noise:

The electrical noise generated by metal conductive slip rings during transmission is extremely low, usually below the microvolt level. This is thanks to its precise manufacturing process and high-quality conductive materials, ensuring the clarity and accuracy of transmitted signals. Metal conductive slip rings have significant advantages in situations where high-precision signal transmission is required.

3、 Application scenarios

Metal conductive slip rings are widely used in various applications that require rotational transmission due to their high conductivity, wear and corrosion resistance, and long lifespan. Here are some typical application scenarios:

Wind power generation:

In wind power generation systems, metal conductive slip rings are used to transmit power, control signals, and data signals of wind turbines. Its multi-channel transmission characteristics enable wind turbines to achieve intelligent control and remote monitoring, improving power generation efficiency and operation efficiency.

Aerospace:

In the aerospace field, metal conductive slip rings are used to transmit control signals and data of aircraft. Its high reliability and long lifespan enable the aircraft to operate stably in extreme environments, ensuring flight safety. Meanwhile, the compact and lightweight structure of metal conductive slip rings helps to reduce the weight and energy consumption of aircraft.

robot:

In the field of robotics, metal conductive slip rings are used to transmit control signals, power, and data of robots. Its compact structure and easy installation enable the robot to move and operate more flexibly, while ensuring signal stability and power efficiency. This helps to improve the performance and reliability of robots, and reduce maintenance costs.

Medical equipment:

In medical equipment, metal conductive slip rings are used to transmit control signals and data of medical devices. Its low electrical noise and high transmission performance ensure the stability and reliability of medical equipment, which helps doctors make accurate diagnoses and treatments. Meanwhile, the metal conductive slip ring has a compact structure, is easy to clean and maintain, and meets the hygiene requirements of medical equipment.

Security monitoring:

In the field of security monitoring, metal conductive slip rings are used to transmit control signals and data of monitoring cameras. Its multi-channel transmission characteristics enable surveillance cameras to simultaneously receive and send multiple types of information, such as video, audio, alarm signals, etc. This helps to improve the efficiency and accuracy of security monitoring, ensuring the safety of personnel and property.

Industrial automation:

In the field of industrial automation, metal conductive slip rings are used to transmit control signals and data of automation equipment. Its high conductivity and long lifespan enable automated equipment to operate more efficiently, improving production efficiency and quality. Meanwhile, the multi-channel transmission characteristics of metal conductive slip rings enable automation equipment to simultaneously receive and send multiple types of information, achieving more intelligent control and management.

4、 Maintenance methods

In order to ensure the long-term stable operation of metal conductive slip rings, regular maintenance and upkeep are necessary. Here are some common maintenance methods:

Regular inspection:

Regularly inspect metal conductive slip rings, including appearance, electrical performance, and mechanical performance. During the inspection process, attention should be paid to observing whether there is wear, cracks, or accumulation of dirt on the surface of the slip ring. If any abnormal situation is found, measures should be taken in a timely manner to prevent the fault from expanding.

Cleaning and maintenance:

Regularly clean and maintain metal conductive slip rings to remove surface dirt and oxides. You can use a soft cloth or cotton swab to gently wipe the surface of the slip ring, avoiding the use of hard objects or sharp tools to clean, so as not to scratch the surface of the slip ring. Meanwhile, attention should be paid to avoiding the use of corrosive cleaning agents or solvents to prevent damage to the slip ring. During the cleaning process, specialized lubricants or cleaning agents can be used in moderation to improve the cleaning effect and extend the service life of the slip ring.

Electrical performance testing:

Regularly conduct electrical performance tests on metal conductive slip rings, including transmission efficiency, electrical isolation performance, and transmission error. During the testing process, attention should be paid to recording the test results and comparing them with the standard values. If abnormal test results are found, measures should be taken in a timely manner to ensure that the electrical performance of the slip ring meets the requirements. This helps to promptly identify potential issues and take measures to repair them, avoiding the occurrence of malfunctions.

Environmental adaptability inspection:

Regularly conduct environmental adaptability checks on metal conductive slip rings, including temperature, humidity, magnetic field strength, and other aspects. During the inspection process, attention should be paid to observing the performance of the slip ring in different environments to ensure that it can maintain stable performance in various complex environments. If it is found that the performance of the slip ring decreases or malfunctions in a specific environment, measures should be taken in a timely manner to handle or adjust the working environment.

Replace worn parts:

If some components of the metal conductive slip ring (such as electric brushes, contact rings, etc.) are found to be severely worn, they should be replaced in a timely manner. When replacing, make sure to select a new component with the same specifications as the original component, and install and debug it according to the instructions. At the same time, attention should be paid to checking the quality and performance of new components to ensure that they meet the requirements for use. During the replacement process, caution should be exercised to avoid causing additional damage or contamination to the slip ring.

Storage and transportation:

When storing and transporting metal conductive slip rings, attention should be paid to avoiding adverse effects such as moisture, heat, or mechanical impact. It should be placed in a dry, ventilated environment and avoid prolonged exposure to high temperatures, high humidity, or corrosive environments. At the same time, it should be ensured that the slip ring is not subjected to compression or collision during transportation to avoid damage. During storage and transportation, specialized packaging materials and protective measures can be used to protect the safety and integrity of the slip ring.

Professional training:

To ensure the correct use and maintenance of metal conductive slip rings, it is recommended to provide professional training for operators. Through training, operators can understand the working principle, performance characteristics, and maintenance methods of slip rings, thereby better using and maintaining slip rings. This helps to improve the service life and performance stability of slip rings, reduce failure rates and maintenance costs.
