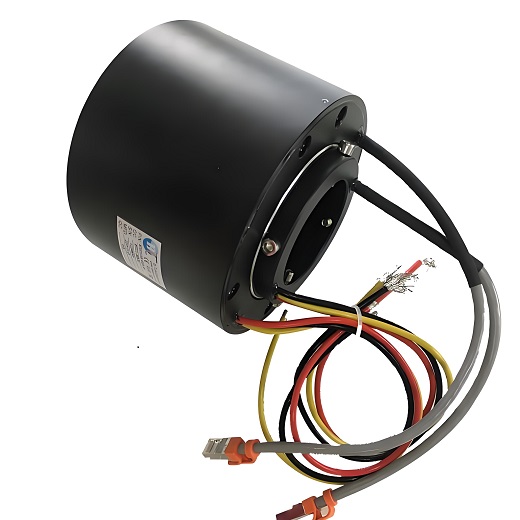

Copper Slip Ring

Copper Slip Ring is an electrical component that realizes the continuous transmission of power and signals between rotating parts and fixed parts through the friction between brushes and contact rings. It is widely used in equipment that needs to rotate and maintain stable power and signal transmission, such as rotating platforms, wind turbines, robots, radar systems, etc. The core advantages of copper Slip Rings are their excellent conductivity, low contact resistance and long-term stability, so they have broad application prospects in high-demand transmission applications.

Copper is one of the slip ring materials because of its excellent electrical conductivity, which can ensure low loss when transmitting power and signals. Compared with other metals, copper materials have better conductivity and lower resistance, which makes copper Slip Rings the preferred material in many precision equipment and high-frequency applications.

1. High conductivity:

The most notable feature of copper Slip Rings is their excellent electrical conductivity. The electrical conductivity of copper is very high, about 95% of silver, which is much higher than aluminum and other commonly used materials. This enables copper slip rings to provide stable and low-loss effects in power transmission and signal transmission.

Features Analysis:

Low contact resistance: The contact resistance of copper slip rings is usually less than 50mΩ, which makes almost no energy loss during power transmission and signal transmission more stable. In the environment of high-speed rotation and frequent use, low contact resistance ensures long-term stable operation of copper slip rings.

Efficient current transmission: Due to the excellent conductivity of copper, copper slip rings can support the transmission of high currents and meet the needs of high-power equipment. For example, in high-power applications such as wind power generation and industrial motors, copper slip rings can work stably to ensure the normal operation of equipment.

2. Wear resistance and oxidation resistance:

Although copper has good conductivity, its surface is easy to oxidize. To solve this problem, copper slip rings are usually designed with special processing techniques such as silver or gold plating. These surface treatments can effectively improve the oxidation resistance of copper slip rings and ensure high performance over a long period of time.

Features Analysis:

Anti-oxidation treatment: In order to improve the oxidation resistance of copper slip rings, gold or silver plating is usually performed on the surface of copper contact rings. Gold plating can effectively prevent oxidation of copper surface, maintain the stability of electrical contact, and extend service life.

Wear resistance: The surface of the copper slip ring is treated with high-quality materials and coatings, which enables it to withstand long-term wear without reducing performance. Even under high speed and high load conditions, the copper slip ring can still maintain low friction and stable working conditions.

3. Applicable to high speed and high load:

Copper slip rings are widely used in high-speed rotation and high-load equipment. Their design and materials enable them to adapt to extreme working conditions. Copper slip rings can work stably under high speed and load conditions to ensure continuous operation of the equipment.

Feature analysis:

High speed support: Copper slip rings are usually designed to support rotation speeds of up to several thousand revolutions per minute (RPM). During these high-speed rotations, the brushes of the slip rings can maintain stable contact with the contact rings to ensure continuous transmission of power and signals.

High load capacity: Copper slip rings can transmit currents from microamperes to hundreds of amperes to meet the needs of high-power equipment. Its high load capacity makes it widely used in industrial motors, wind power generation, ships, power transmission and other fields.

4. Multi-channel design:

The design of copper slip ring can support the simultaneous transmission of multiple channels, and provide transmission functions of multiple information such as power, signal, data, etc. The multi-channel design enables copper slip ring to complete multiple tasks in a single component, simplify equipment design, and improve the compactness of the system.

Feature analysis:

Multi-channel transmission: Copper slip rings can provide configurations from 1 channel to dozens of channels, supporting the simultaneous transmission of multiple signals, such as power, video signals, audio signals, data, etc. This makes slip rings particularly important in complex automation control systems and multi-functional equipment.

High integration: The multi-channel design allows multiple signals to be transmitted through a single slip ring, reducing the need for the layout of multiple cables, making the equipment more concise and compact.

5. Environmental resistance:

The design of copper slip rings takes into account the harsh working environment and usually has a strong ability to resist environmental factors, such as high temperature, low temperature, humidity, vibration, etc. Its outer shell and internal components usually adopt a protective design to ensure that the slip ring can work stably in complex environments.

Features Analysis:

Waterproof and Dustproof: Many copper slip rings are designed to be waterproof and dustproof to adapt to industrial environments or outdoor use. The protection level can usually reach IP65 or higher to ensure that the slip ring works normally in a humid or dusty environment.

Anti-vibration design: In some high-vibration applications, such as military equipment, aerospace equipment or wind turbines, the copper slip ring design usually enhances its anti-vibration ability to ensure that the equipment can still provide stable signal and power transmission in a high-vibration environment.

6. Application scenarios:

Copper slip rings are widely used in many fields due to their excellent electrical performance and reliability. The following are some typical application scenarios:

Wind power generation: In wind turbines, copper slip rings are used to transmit electricity from rotating wind blades to stationary power grids. Copper slip rings can withstand high load currents and complex environmental conditions to ensure the long-term stable operation of wind turbines.

Robotics: In industrial robots and automation equipment, copper slip rings are used to provide power and signal transmission for rotating parts. Its high conductivity and multi-channel design enable robots to achieve high-precision control and operation.

Radar systems: In radar and satellite communication systems, copper slip rings are used to transmit high-frequency signals to ensure stable communication between the rotating part of the antenna and the ground receiving system. Its high-frequency stability makes it essential in these applications.

Rotating platforms and camera pan-tilts: In rotating platforms or camera pan-tilts, copper slip rings are used to transmit a variety of signals such as video, data, and power to ensure that the equipment can maintain continuous electrical connection during rotation.

Aerospace and military: In spacecraft, missiles and military equipment, copper slip rings are often used to provide stable transmission of power and signals, especially under high vibration, high temperature and harsh environmental conditions, the stability and reliability of copper slip rings are crucial.

Medical equipment: In some special medical equipment, copper slip rings are used for signal and power transmission, especially in instruments that require 360-degree rotation, the slip rings ensure that the equipment can work smoothly.

7. Maintenance and care:

As a precision electrical component, the maintenance of copper slip rings directly affects the operating efficiency and service life of the equipment. Regular maintenance and care of copper slip rings can effectively extend their service life and maintain stable performance.

Maintenance recommendations:

Regularly check the brushes and contact rings: Brushes and contact rings are key components of slip rings. Long-term friction may cause brush wear. Regularly check the wear of the brushes and replace them when necessary to ensure the stability of power and signal transmission.

Clean the slip ring housing: Clean the slip ring housing regularly to prevent dust and dirt from entering the slip ring and affecting its performance. For slip rings with waterproof and dustproof design, the protective cover and seals should be checked regularly to see if they are intact.

Check the wiring port: Since the wiring port of the copper slip ring is in working condition for a long time, it is very important to check whether the wiring port is loose or corroded. Clean and tighten the wiring port in time to ensure stable electrical connection.

Check the speed and load: High speed and high load may cause the slip ring to overheat or produce excessive wear. Make sure that the slip ring operates within the recommended speed and load range to avoid overload use.

Through these regular maintenance and care, the long-term reliability and stability of the copper slip ring in various application scenarios can be ensured, and equipment failures caused by poor contact or wear can be avoided.
