The Steps of Potting in Slip Ring Manufacturing: Ensuring Durability and Performance

Slip Rings are crucial components used in various industries to enable continuous power and data transmission between rotating and stationary parts. To ensure that these electromechanical devices perform optimally, they must be able to withstand harsh environmental conditions, including high temperatures, moisture, and vibrations. One of the most effective ways to protect slip rings and enhance their reliability is through a process known as potting or encapsulation.

In this blog post, we will explore the step-by-step process of potting in slip ring manufacturing, its importance, and how it contributes to the overall durability and longevity of custom Slip Rings.

What is Potting in Slip Ring Manufacturing?

Potting, in the context of slip ring manufacturing, is a process that involves encapsulating the internal components of a slip ring with a protective resin or gel-like substance. This substance, often referred to as "potting compound," provides several benefits, including:

Electrical insulation: Protecting the electrical components from shorts or interference.

Environmental protection: Shielding the slip ring from moisture, dust, and corrosive elements.

Vibration damping: Reducing mechanical stress caused by vibrations during operation.

Thermal protection: Distributing heat evenly and preventing overheating of sensitive components.

Potting is often employed in slip rings used in critical applications, such as aerospace, renewable energy, and industrial automation, where reliability is paramount. Now, let's take a look at the step-by-step process of potting in slip ring manufacturing.

Step-by-Step Potting Process in Slip Ring Manufacturing

Preparation of the Slip Ring Assembly

Before beginning the potting process, the slip ring assembly must be thoroughly prepared. This involves ensuring that all components, including the rotor and stator, are properly aligned and secured in place. Any loose parts are fixed to prevent movement during the potting process.

The slip ring’s internal components, including wiring, brushes, and connectors, must also be inspected for any damage or defects. Any issues should be addressed before moving forward, as potting over damaged components could lead to operational failures.

Selection of Potting Compound

The choice of potting compound is critical to the success of the process. Potting compounds are typically made of resins such as epoxy, polyurethane, silicone, or polyester. Each material has its own unique properties, and the selection is based on factors such as:

Environmental conditions: The level of moisture, temperature extremes, or exposure to chemicals that the slip ring will face.

Electrical insulation requirements: The ability of the compound to insulate the internal components and prevent electrical shorts.

Mechanical strength: The compound's ability to withstand vibration, impact, or other mechanical stresses.

For Slip Rings that need to function in extreme conditions (such as high temperatures or corrosive environments), high-performance compounds like epoxy or silicone are often chosen for their superior protection properties.

Mixing the Potting Compound

Once the potting compound is selected, it must be mixed according to the manufacturer's specifications. Many potting compounds consist of two parts (resin and hardener) that must be combined in precise ratios to ensure proper curing and performance. It's crucial to follow the correct mixing procedure to avoid issues such as improper curing or compromised material properties.

In some cases, the compound may require degassing to remove any trapped air bubbles that could affect its effectiveness. This can be done through a vacuum chamber or other specialized equipment.

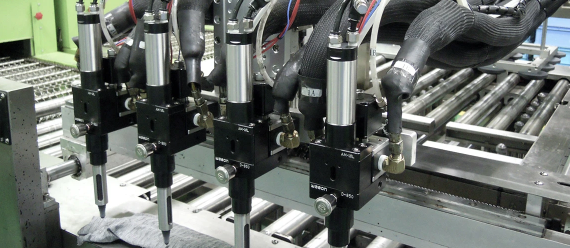

Pouring the Potting Compound

The next step is to pour the mixed potting compound into the slip ring assembly. This is typically done under controlled conditions to ensure that the resin completely fills the interior of the slip ring, surrounding all components with a uniform layer of protection.

The pouring process is carefully monitored to ensure that no air pockets or gaps are left inside the assembly, as these could compromise the integrity of the slip ring. Additionally, the assembly must be kept level during the pouring to ensure even distribution of the potting material.

Curing the Potting Compound

After the potting compound is poured into the slip ring assembly, it needs to be cured. The curing process allows the resin to harden and form a solid protective layer around the components. Depending on the type of resin used, curing can take place at room temperature or in a heated oven.

The curing time and temperature are essential to achieving the desired mechanical and electrical properties of the potting material. If the curing process is not properly controlled, the compound may not fully harden, which could result in insufficient protection or reduced performance.

Inspection and Testing

Once the potting compound has fully cured, the slip ring assembly undergoes a rigorous inspection process. This includes checking the physical appearance for any cracks, bubbles, or inconsistencies in the potting layer. The assembly may also undergo electrical and mechanical testing to ensure that the potting process has not interfered with the slip ring’s functionality.

Testing typically involves checking for continuity, insulation resistance, and verifying that the slip ring performs as expected under various operating conditions, such as vibration, temperature fluctuations, and moisture exposure.

Final Assembly and Packaging

After the potting process is complete and the slip ring passes all quality control tests, the final assembly can take place. This includes adding any additional components, such as connectors, bearings, or protective covers, and packaging the slip ring for shipment. Reehonde ensures that every slip ring is properly packaged to prevent damage during transport.

Benefits of Potting in Custom Slip Ring Manufacturing

Potting offers several key benefits for slip rings in critical applications:

Enhanced Durability: Potting protects the internal components from environmental hazards such as moisture, dust, and chemicals, significantly increasing the slip ring’s operational lifespan.

Improved Electrical Performance: The insulation provided by the potting compound reduces the risk of electrical shorts, arcing, or signal interference, ensuring reliable power and data transmission.

Vibration Damping: Potting compounds help dampen vibrations, preventing mechanical stress on the slip ring and reducing wear over time.

Thermal Management: Potting helps distribute heat evenly across the slip ring, preventing overheating and ensuring the system operates at optimal temperatures.

Conclusion

Potting is a critical step in the manufacturing of Custom Slip Rings, providing essential protection for internal components while enhancing their electrical, mechanical, and thermal performance. By encapsulating the slip ring assembly with a carefully selected potting compound, manufacturers can ensure that the slip ring is durable, reliable, and capable of withstanding harsh operational conditions.

At Reehonde, we specialize in providing custom slip ring solutions, and our advanced potting processes help guarantee that each slip ring we produce meets the highest standards of performance and durability. If you have any questions or need a tailored slip ring solution for your application, our team of experts is ready to assist you.
