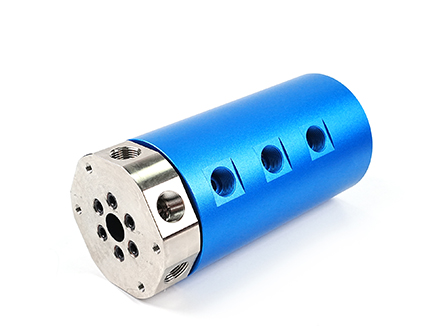

Hydraulic Slip Ring

Definition

Hydraulic Slip Ring, is a specially designed hydraulic component primarily used to transmit hydraulic oil, signals, or electricity between rotating and stationary components. It combines the advantages of hydraulic technology with the rotational transmission characteristics of slip rings, enabling rotational motion without interrupting fluid or signal transmission.

Characteristics

Compact structure: Hydraulic slip rings typically adopt a compact design to adapt to various space constrained application scenarios.

High transmission efficiency: By optimizing fluid channels and sealing structures, hydraulic slip rings can achieve efficient hydraulic transmission and reduce energy loss.

Rotational stability: Hydraulic slip rings can maintain stable transmission performance during rotation and are not easily affected by external interference.

Reliable sealing: Advanced sealing technology is used to ensure that hydraulic oil or signals will not leak during transmission.

Long service life: After careful design and manufacturing, hydraulic slip rings have a long service life and can adapt to the needs of long-term continuous operation.

Function

Hydraulic transmission: The main function of hydraulic slip rings is to transmit hydraulic oil and provide necessary hydraulic power for rotating components.

Signal transmission: In addition to hydraulic transmission, some hydraulic slip rings can also transmit electrical or data signals, enabling communication between rotating and stationary components.

Power transmission: Some specially designed hydraulic slip rings can also transmit electricity, providing electrical support for rotating components.

Product Parameters

Application Fields

Machine tools and fixtures: In the field of machine tools and fixtures, hydraulic slip rings are widely used in components such as power chucks to achieve hydraulic power transmission and signal communication for rotating parts.

Aerospace: In the aerospace field, hydraulic slip rings are used to transmit hydraulic oil and signals to support attitude control and navigation systems of aircraft.

Ship and Ocean Engineering: In the field of ship and ocean engineering, hydraulic slip rings are used to transmit hydraulic power and signals to support the operation and monitoring of various marine equipment.

Automation and Robotics: In the field of automation and robotics, hydraulic slip rings are used to achieve hydraulic power transmission and signal communication of rotating joints, improving the flexibility and reliability of robots.

Maintenance and upkeep

Regular inspection: Regularly inspect the hydraulic slip ring, including checking the wear of seals and the blockage of fluid channels.

Cleaning and maintenance: Keep the hydraulic slip ring clean and regularly clean the dirt and impurities attached to the surface of the slip ring.

Replace seals: When worn or damaged seals are found, new seals should be replaced promptly to ensure the sealing performance of the hydraulic slip ring.

Lubrication and maintenance: Regularly lubricate and maintain hydraulic slip rings according to usage requirements to reduce friction and wear.

Avoid overload: When using hydraulic slip rings, overload operation should be avoided to avoid damaging the slip ring structure or affecting transmission performance.

Precautions

Choose the appropriate model: When selecting hydraulic slip rings, the appropriate model and specifications should be chosen based on specific application scenarios and requirements.

Correct installation: The installation of hydraulic slip rings should follow the instructions in the product manual to ensure correct and secure installation.

Avoid high temperature environment: When hydraulic slip rings work in high temperature environments, it may cause problems such as aging of sealing materials and decreased fluid performance. Therefore, it is advisable to avoid using hydraulic slip rings in high-temperature environments as much as possible.

Preventing vibration and impact: Hydraulic slip rings working in vibration and impact environments may cause structural looseness, seal failure, and other issues. Therefore, effective vibration reduction and buffering measures should be taken to minimize the impact of vibration and shock on hydraulic slip rings.

Regular inspection and maintenance: Regularly inspect and maintain the hydraulic slip ring, promptly identify and solve problems, and ensure the long-term stable operation of the hydraulic slip ring.

In summary, hydraulic slip rings, as a specially designed hydraulic component, have broad application prospects in fields such as machine tools and fixtures, aerospace, shipbuilding and marine engineering, as well as automation and robotics. During use, the guidance and precautions in the product manual should be strictly followed, and regular maintenance and upkeep should be carried out to ensure the stability and reliability of the hydraulic slip ring. Meanwhile, with the continuous development of technology, the performance and application fields of hydraulic slip rings will also continue to expand and improve.
