What Materials Are Used in Industrial Through Hole Slip Rings?

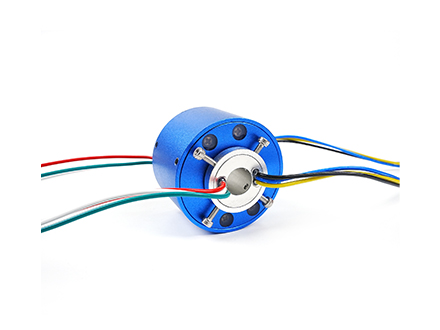

Industrial Through Hole Slip Rings are essential components used to transmit power, signals, and data between stationary and rotating parts in modern machinery. They are widely applied in automation equipment, robotics, wind turbines, and packaging systems. The performance and reliability of these devices depend heavily on the materials used in their construction.

The core structure of a hollow shaft slip ring typically consists of a conductive ring body, precision brushes, insulation materials, and a mechanical housing. The conductive rings are often made from high-quality copper alloys such as brass or phosphor bronze, which provide excellent electrical conductivity and wear resistance. In some high-performance applications, gold or silver plating is added to improve signal transmission stability and reduce electrical noise.

A bore slip ring design requires strong and durable housing materials to support continuous rotation and mechanical stress. Common housing materials include aluminum alloy and stainless steel. Aluminum is widely used because it is lightweight, corrosion-resistant, and suitable for heat dissipation. Stainless steel, on the other hand, is chosen for harsh industrial environments where higher strength and durability are required.

Inside a rotary slip ring through hole system, insulation materials play a critical role in preventing electrical leakage and ensuring safe operation. Engineering plastics such as PTFE (Teflon), PEEK, and high-grade nylon are commonly used due to their excellent electrical insulation properties, heat resistance, and mechanical stability.

The brush contact system in a Through Bore Slip Ring is another key component that determines performance and lifespan. Precious metal fiber brushes or carbon brushes are often used to ensure stable contact with minimal friction. These materials help maintain consistent signal transmission while reducing wear over long periods of operation.

In advanced industrial applications, additional materials such as gold plating, ceramic insulation, and composite polymers may also be used to enhance performance. These improvements allow Through Hole Slip Rings to operate efficiently in high-speed, high-frequency, and high-current environments.

Overall, the material selection for a hollow shaft slip ring, bore slip ring, or rotary slip ring through hole directly affects conductivity, durability, and reliability. High-quality materials ensure long service life, stable signal transmission, and safe operation in demanding industrial conditions. Whether it is a standard Through Bore Slip Ring or a customized industrial solution, material engineering plays a vital role in overall performance.
