What Is the Function of Slip Rings in AC Generators?

AC generators, also known as alternators, are widely used in power generation systems, industrial equipment, wind turbines, and backup power systems. One important component that enables continuous electrical operation in many AC generators is the Slip Ring.

Many people ask: what is the function of Slip Rings in AC generators? The main function of Slip Rings is to provide a continuous electrical connection between rotating and stationary components, allowing electrical current and signals to transfer while the rotor continues rotating.

This article explains the working principle, main functions, advantages, and applications of AC generator slip rings.

What Is a Slip Ring in an AC Generator?

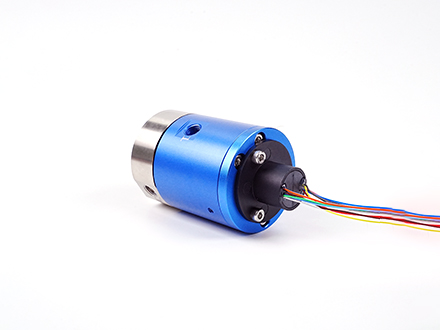

A slip ring is an electromechanical component used to transmit electrical power or signals between a rotating part and a stationary part.

In an AC generator, the slip ring is installed on the rotor shaft and rotates together with the rotor. Carbon brushes remain stationary and maintain contact with the rotating conductive rings to transfer electrical current.

The main components of a slip ring include:

• Conductive rings

• Carbon brushes

• Insulating materials

• Rotating shaft assembly

This structure allows electricity to flow continuously while the generator rotor is rotating.

How Does an AC Generator Work?

An AC generator converts mechanical energy into electrical energy through electromagnetic induction.

The basic working process includes:

1. Mechanical energy rotates the rotor.

2. The rotor produces a rotating magnetic field.

3. The magnetic field interacts with the stator windings.

4. Electrical current is generated and delivered to the external circuit.

Since the rotor rotates while external electrical connections remain stationary, a reliable electrical transfer method is required. The slip ring provides this connection.

Main Functions of Slip Rings in AC Generators

1. Transfer Electrical Current Between Rotating and Stationary Parts

The primary function of slip rings in AC generators is transferring electrical current between the rotating rotor and stationary electrical circuits.

Without slip rings:

• Electrical wires would twist during continuous rotation.

• Long-term operation could damage the wiring connections.

• Electrical transmission would become unstable.

A slip ring works as a rotating electrical connector, allowing continuous current transmission during generator operation.

2. Provide Excitation Current to the Rotor

Many synchronous AC generators require DC excitation current to create a magnetic field on the rotor.

Slip rings transfer excitation current from the stationary power supply to the rotating rotor winding.

The excitation process includes:

1. DC power is supplied from an external source.

2. Carbon brushes transfer current to the slip rings.

3. The slip rings deliver current to the rotor winding.

4. The rotor generates a magnetic field for electricity production.

3. Maintain Continuous Generator Operation

AC generators often operate continuously in demanding environments such as power stations, wind turbines, and industrial systems.

Slip rings allow the rotor to rotate continuously while maintaining stable electrical connections, improving:

• Operating stability

• Generator reliability

• System efficiency

4. Transfer Control Signals and Data

Modern generator systems may require not only power transmission but also signal communication.

Advanced Electrical Slip Rings can transfer:

• Sensor signals

• Control signals

• Monitoring data

• Communication signals

This allows real-time monitoring and control of rotating equipment.

5. Support High-Speed Rotating Applications

Many generator systems operate under high-speed rotation conditions. A reliable generator slip ring ensures stable electrical contact during continuous movement.

Important performance factors include:

• Low contact resistance

• High wear resistance

• Stable electrical performance

• Effective heat dissipation

Slip Ring vs Brushless Excitation System

Not all AC generators use traditional slip rings. Some modern generators use brushless excitation systems.

Applications of Slip Rings in AC Generators

Wind Turbine Generators

Wind turbines use slip rings to transfer:

• Rotor excitation power

• Control signals

• Sensor information

Hydroelectric Generators

Large hydroelectric generators use slip rings for:

• Rotor excitation

• Long-term operation

• Stable electricity generation

Industrial AC Generators

Industrial generator systems use slip rings in:

• Manufacturing equipment

• Heavy machinery

• Automated industrial systems

Marine Generator Systems

Marine power systems require reliable rotating electrical connections, making slip rings an important component in shipboard generators.

Advantages of Using Slip Rings in AC Generators

• Reliable Electrical Transmission:Slip rings maintain stable electrical connections between rotating and stationary parts.

• Continuous Operation:They allow generators to operate continuously without cable twisting problems.

• Flexible Design:Slip rings enable rotating field generator designs.

• Customized Solutions:Professional slip ring manufacturers can provide customized products based on voltage, current, speed, and installation requirements.

How to Choose a Slip Ring for an AC Generator?

Electrical Requirements

Consider:

• Voltage rating

• Current capacity

• Number of circuits

• Signal transmission requirements

Mechanical Requirements

Evaluate:

• Rotation speed

• Shaft size

• Installation space

• Operating environment

Environmental Conditions

For harsh working conditions, choose slip rings with:

• Dust protection

• Waterproof structure

• Temperature resistance

• Corrosion resistance

FAQ About Slip Rings in AC Generators

What is the main function of a slip ring in an AC generator?

The main function is to transfer electrical current between the rotating rotor and stationary circuits while allowing continuous rotation.

Why do AC generators need slip rings?

AC generators use slip rings to provide excitation current to the rotor and maintain stable electrical connections during operation.

Do all AC generators use slip rings?

No. Some generators use brushless excitation systems. However, many synchronous AC generators still rely on slip rings.

What happens if a generator slip ring fails?

A failed slip ring may cause poor electrical contact, unstable excitation current, reduced output power, and generator malfunction.

Conclusion

The main function of slip rings in AC generators is to provide continuous electrical transmission between rotating and stationary components. They supply excitation current to the rotor, transfer signals, and ensure stable generator operation.

Because of their reliability and flexibility, AC generator slip rings remain widely used in wind turbines, hydroelectric generators, industrial alternators, and marine power systems.

For companies looking for reliable rotating electrical solutions, working with an experienced slip ring manufacturer can provide customized designs with stable performance and long service life.
